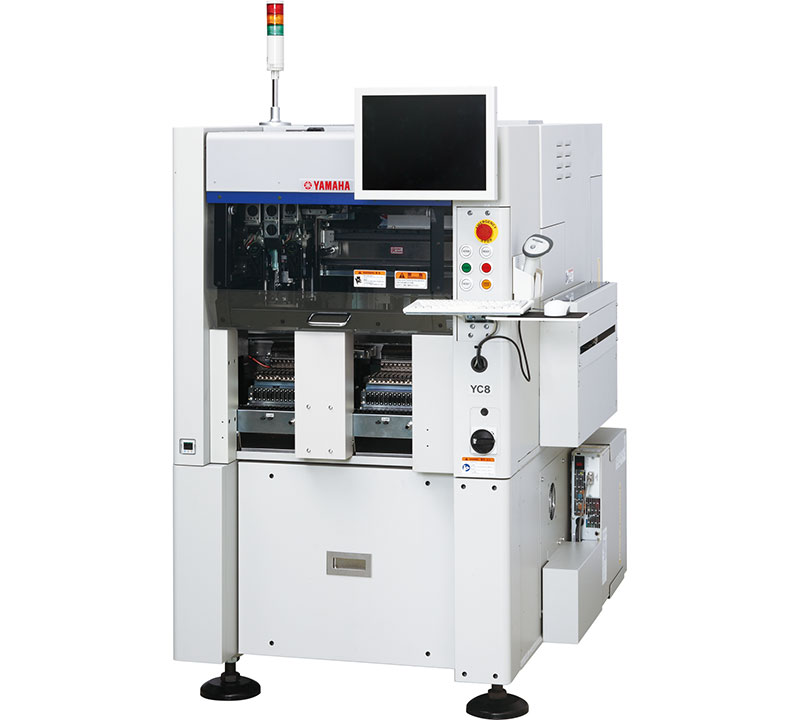

Wide-Range Compact Modular YC8 Overview
Outstanding mounting capability. Maximum components Size : 100 x 100mm Heights : 45mm
- Maximum components
Size : 100 x 100mm
heights : 45mm - Capable heavy components up to 1kg Supports press fitting of components
- Compact machine width of 880 mm allows for more efficient use of factory floor space
- Utilizes the ATS15 automatic tray supply unit capable of handling up to 15 trays
- Compatible with the “SS Feeder” and “ZS Feeder”
Function and Feature

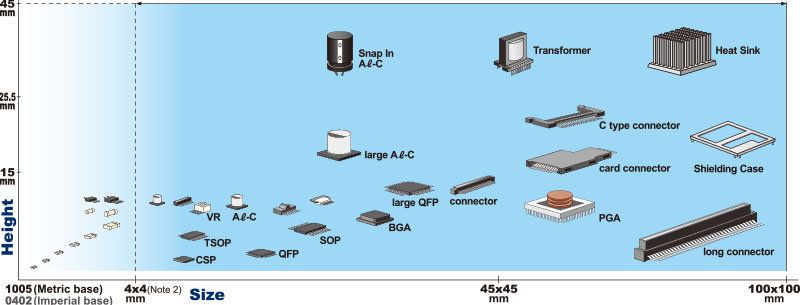

Maximum components Size : 100 x 100mm Heights : 45mm
Capable heavy components up to 1kg. Supports press fitting of components

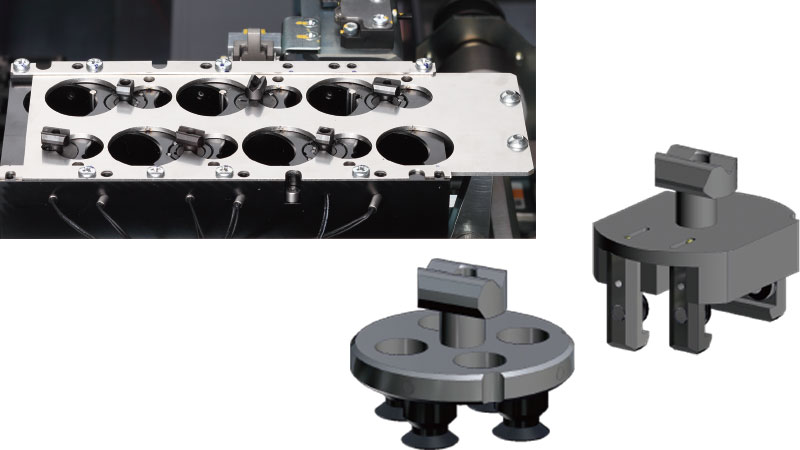

Capable with large nozzles

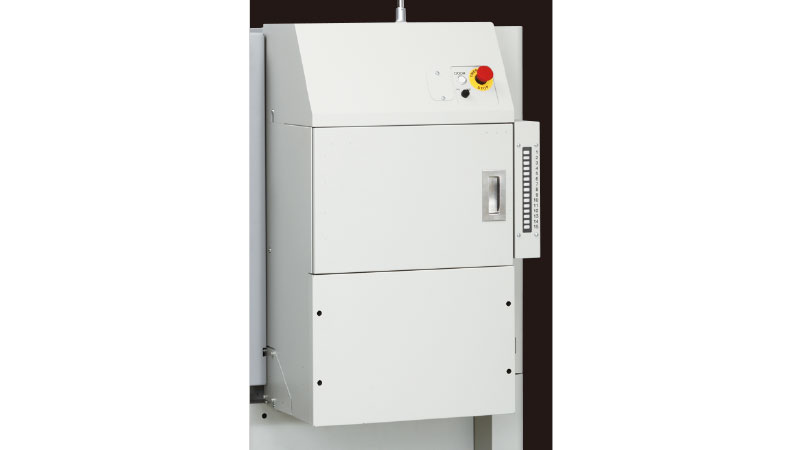

Automatic tray supply unit
Recommend for Such Production Site
For customers who want multiple model-type production
Not dedicated, but multi purpose Mounter for odd-shaped components
Pallet supply via the high universality ATS15
- Easily copes with multiple type tray supply and differing sizes for tray size maximum X:350mm, Y :220mm, heights up to 45mm
- Can supply individual components. Note: Used during special order random bin picking
Sophisticated image processing system fostered by mounter technology
- Multi camera can recognize components ranging from 0402mm chips to □100mm. It can also make position offsets in μｍ units and detect odd-shaped components.

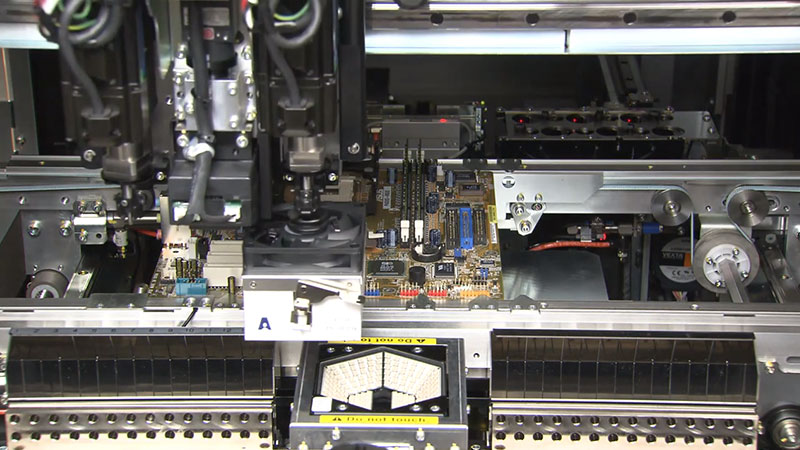

For customers who want production equipment that saves manpower
Realize the reliable automated mounting quality essential for mounters
Reliable head design with high rigidity
- Load force control from 10N to 60N. Equipped with insertion defect detector for use during insertion tasks.
Sophisticated image processing system fostered via mounter technology
- Multi camera can recognize components ranging from 0402mm chips to □100mm. It can also make position offsets in μｍ units and detect odd-shaped components.
- Stable recognition accuracy is realized by laser lighting designed especially for component insertion.
