Surface Mounter
Module Type Mouting System with High Accuracy

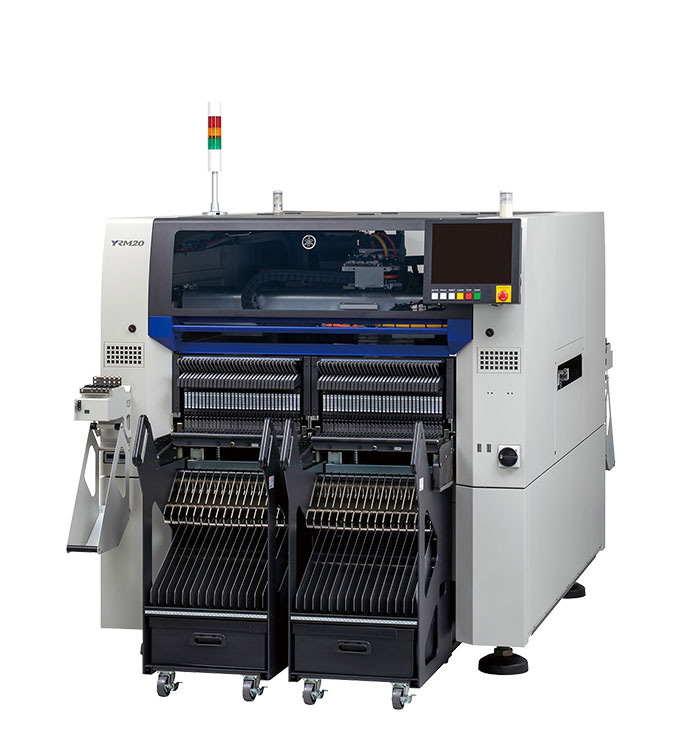

- YRM20
- NEW
- Mounting capability : 115,000CPH
- Placement accuracy (3σ) : ±0.025mm
- Applicable component :
0201mm-W55xL100 T15mm

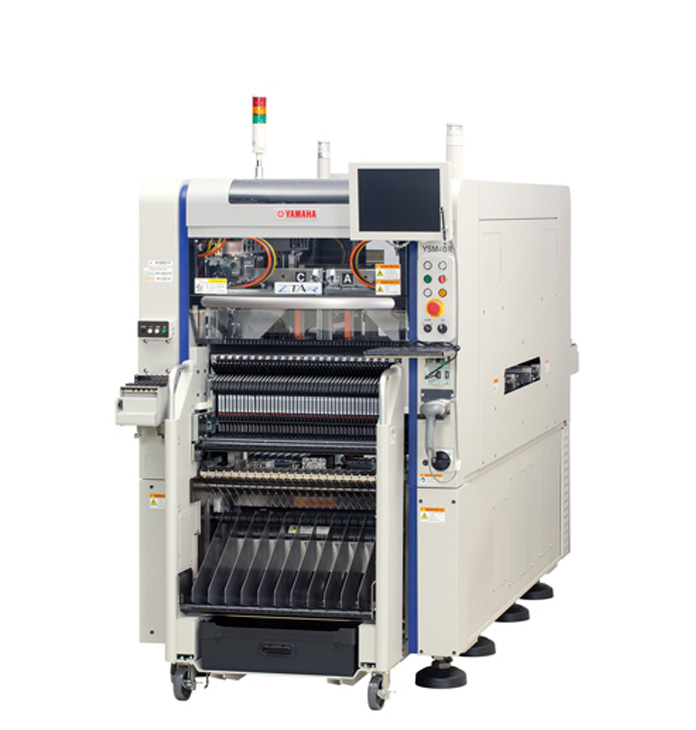

- Z:TA-R YSM40R
- Mounting capability : 200,000CPH
- Placement accuracy (3σ) : ±0.035mm(±0.025mm)※
- Applicable component :
0201mm-W45xL60 T15mm

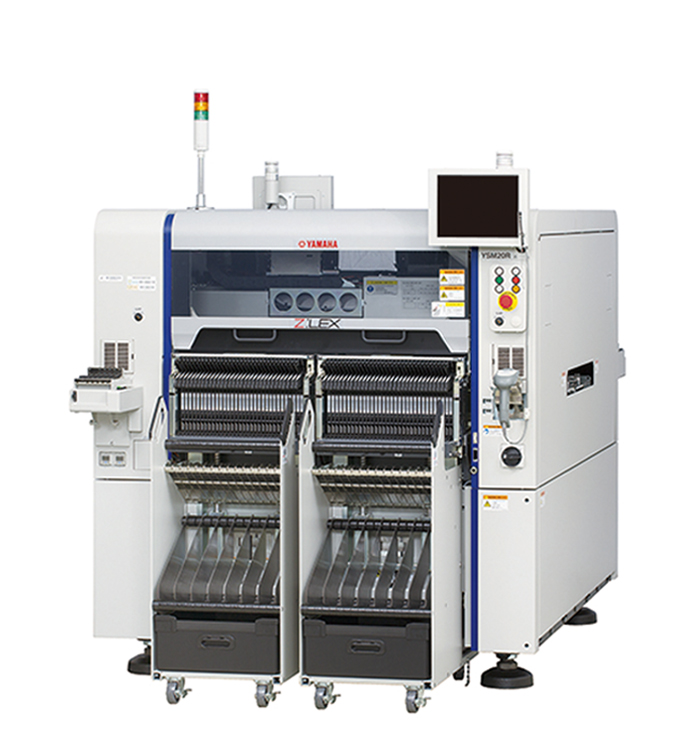

- Z:LEX YSM20R
- Mounting capability : 95,000CPH
- Placement accuracy (3σ) : ±0.035mm(±0.025mm)※
- Applicable component :
0201mm-W55xL100 T28mm

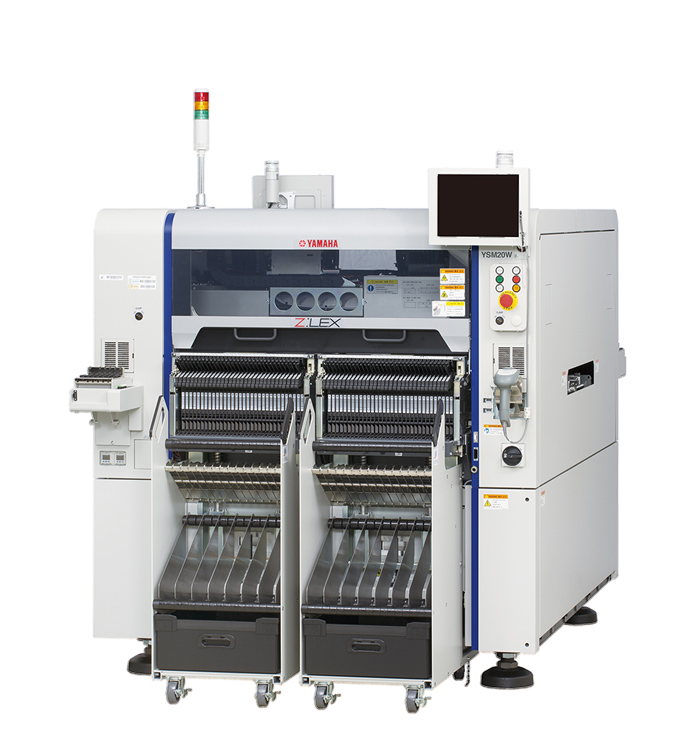

- Z:LEX YSM20WR
- NEW
- Mounting capability : 81,000CPH
- Placement accuracy (3σ) : ±0.035mm(±0.025mm)※
- Applicable component :
0201mm-W55xL100 T28mm

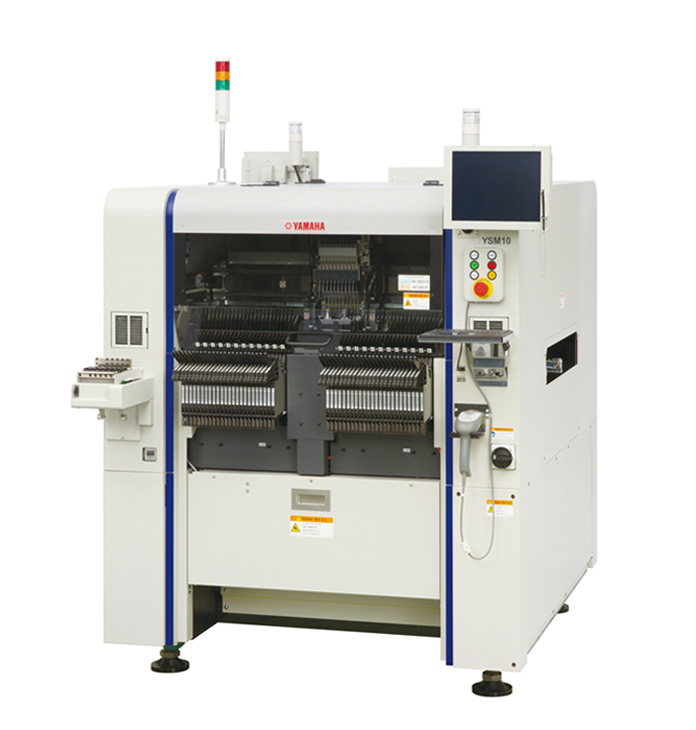

- YSM10
- Mounting capability : 46,000CPH
- Placement accuracy (3σ) : ±0.035mm(±0.025mm)※
- Applicable component :
03015mm-W55xL100 T15mm

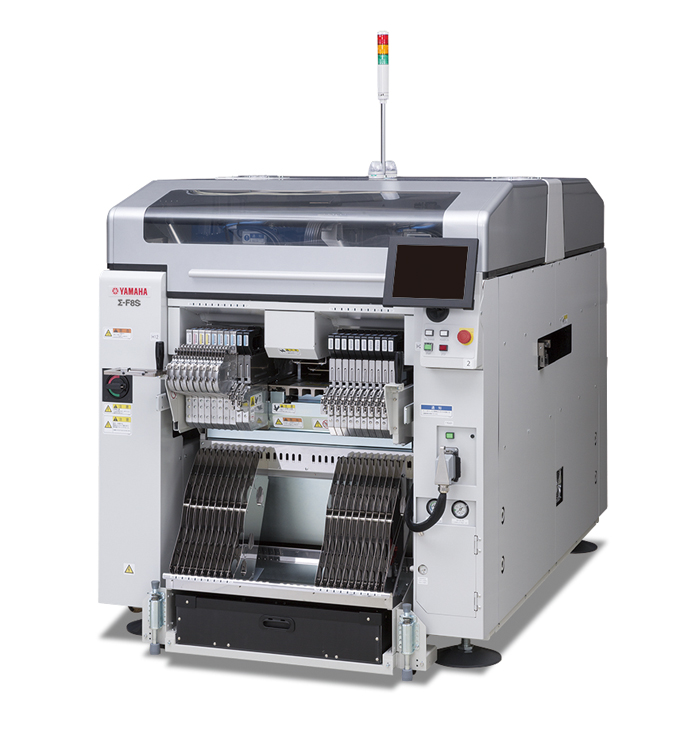

- Σ-F8S
- Mounting capability : 150,000CPH
- Placement accuracy (3σ) : ±0.025mm
- Applicable component :
0201mm-□33 T12.7mm

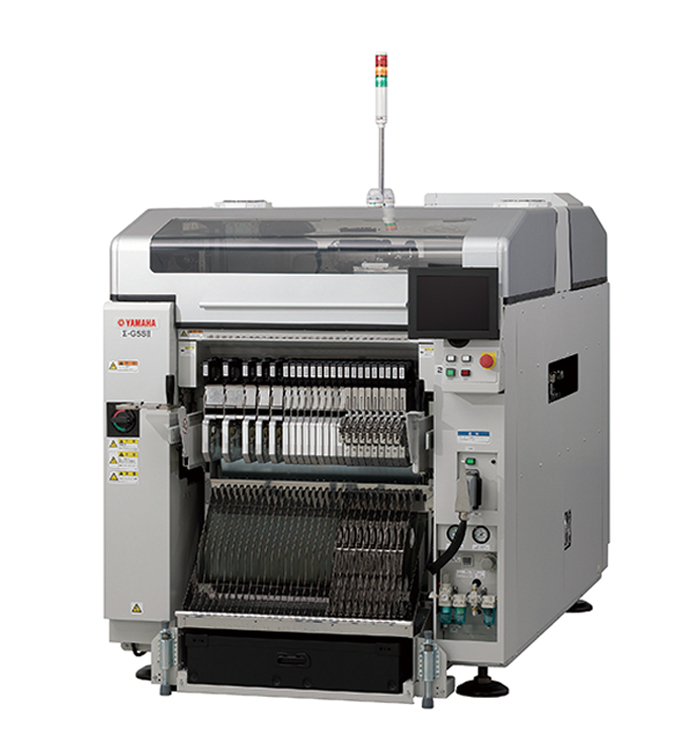

- Σ-G5SⅡ
- Mounting capability : 90,000CPH
- Placement accuracy (3σ) : ±0.025mm
- Applicable component :
0201mm-□72mm T25.4mm

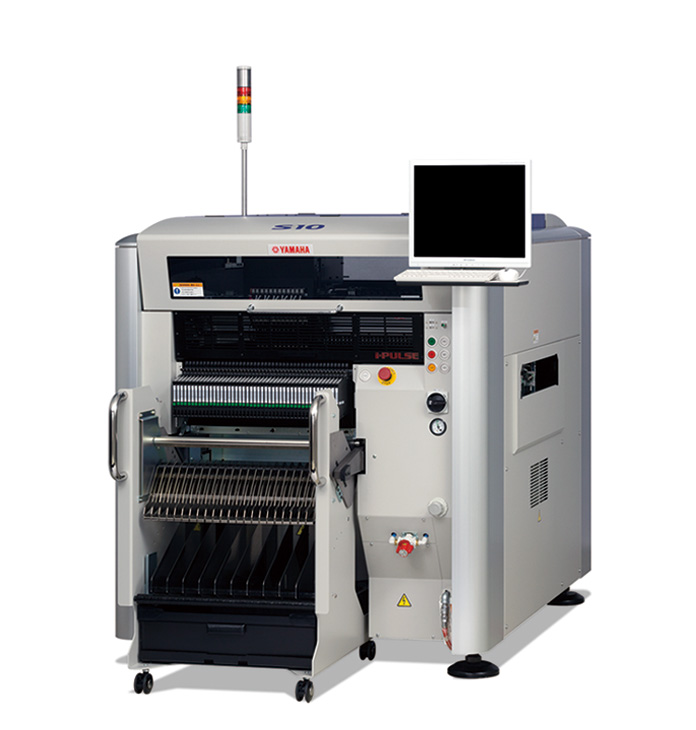

- S10
- Mounting capability : 45,000CPH
- Placement accuracy (μ+3σ) : ±0.025mm
- Applicable component :
0201mm-W90xL120 T30mm

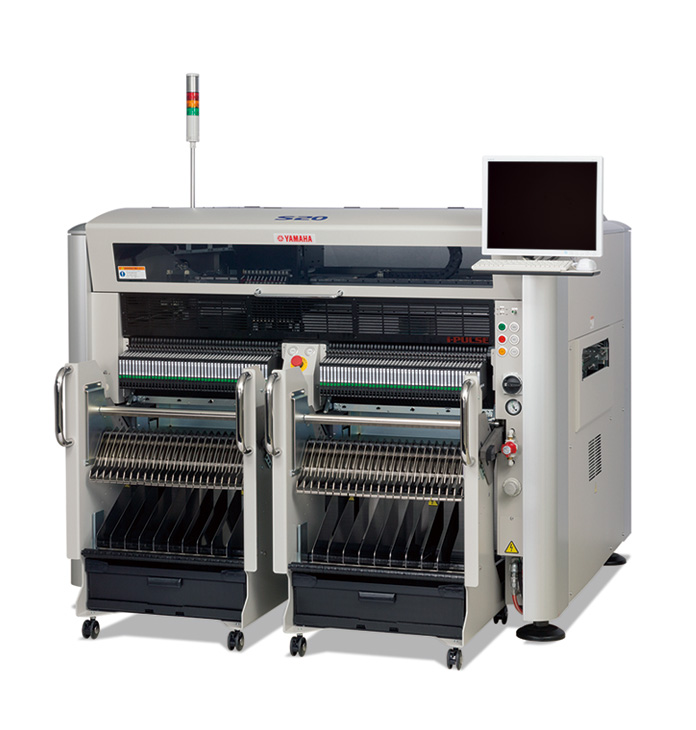

- S20
- Mounting capability : 45,000CPH
- Placement accuracy (μ+3σ) : ±0.025mm
- Applicable component :
0201mm-W90xL120 T30mm

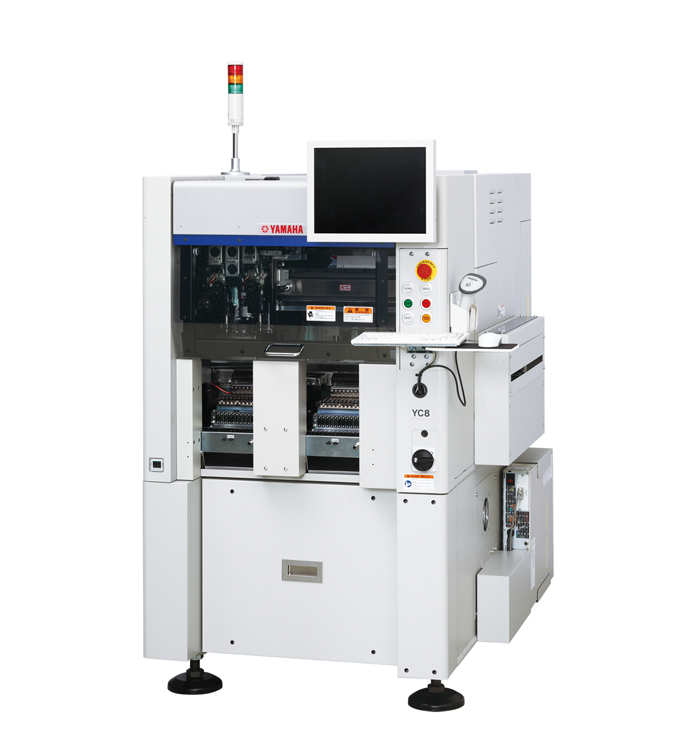

- YC8
- Mounting capability : 1,440CPH
- Placement accuracy (3σ) : ±0.03mm
- Applicable component :
□4mm-□100 T45mm

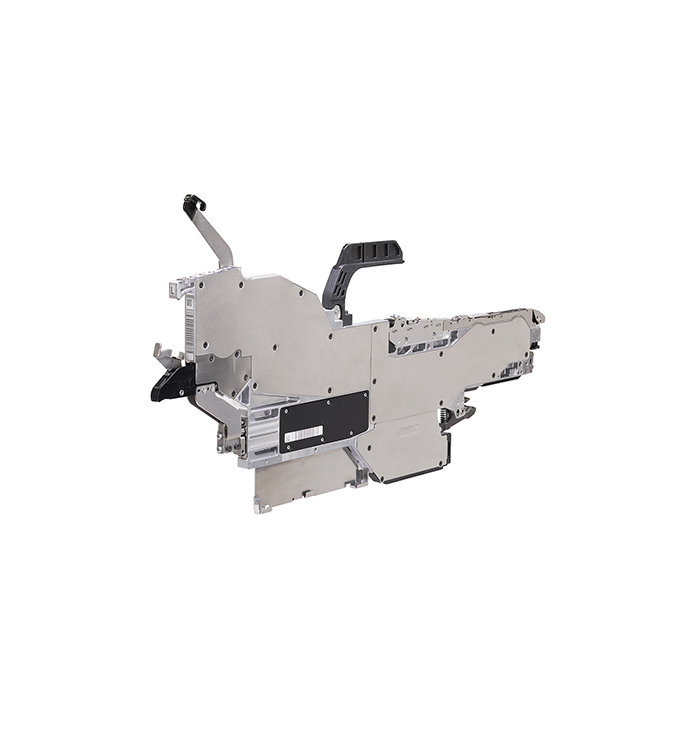

- Auto Loading Feeder
- ※
- Cpk≧1.0 (Under optimum conditions as defined by Yamaha Motor when standard evaluation materials are used)
