Slider table type (STH)

Three types that are newly added to the TRANSERVO series, slider table type, rotary type, and belt type, are introduced.

MENU
Slider table type (STH)

Slider table type (STH)

Universality, energy-saving and low impact achieved with multi-position positioning unique to motorized devices

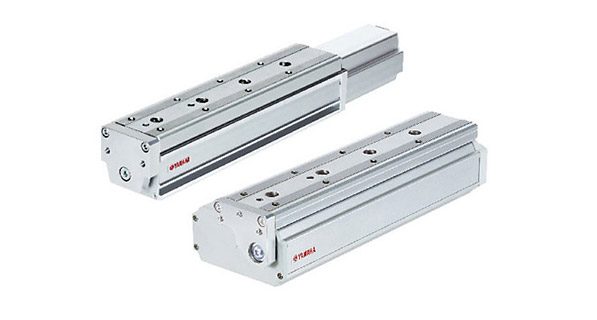

Compact and rigid. Both straight specifications and space-saving specifications are available.

Feature

TRANSERVO series

01New control method combines the best features of servo and stepping motors!

Stepping motors provide great features such as low cost , yet they have a drastic drop in torque at high speeds and heavy current consumption when stopped.
The TRANSERVO by YAMAHA eliminates all these problems by adopting an innovative vector control method. In effect, the TRANSERVO delivers the same functions of a servo motor while using a lower cost stepping motor.

Energy saver!

Control is basically the same as a servomotor so power consumption is kept to a minimum, which saves energy and helps cut down on CO2 emissions.

Perfect stop!

Also perfect stop can be achieved as the same as with ordinary stepping motors so choose this setting if needed.

TRANSERVO

02Environmentally rugged resolver provides closed loop control

The resolver used for detecting the motor position is the same reliable resolver as used in our high-level robots. Resolver offer stable position detection even in harsh environments containing dust or oil, etc. Addtionally the resolution of the resolver is 20480 pulses per revolution.

Environmentally rugged resolver provides closed loop control

The resolver is a magnetic position detector. Its structure is simple with no electronic component and no optical elements. One great feature compared to ordinary optical encoders is that there are very few points where a failure might occur. Vast quantities of resolvers are used in fields like aviation and the automobile industry where reliability is essential and also because they are highly tough in harsh environments with a low failure rate.

Slider table type

01Use of a circulation type linear guide achieves the high rigidity and high accuracy.

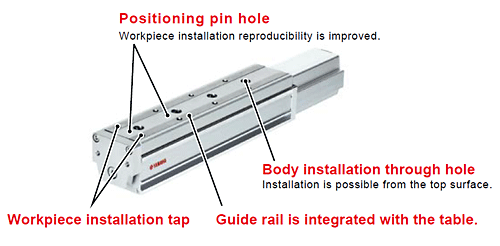

  • Guide rail is integrated with the table.
  • Table deflection amount is small.
  • Use of a circulation type linear guide achieves the high rigidity and high accuracy.
  • STH06 provides an allowable overhang exceeding thatof FLIP-X series T9.
  • Space-saving model with the motor built-into the body is also added to the product lineup.
  • Suitable for precision assembly.

Various data
